Spare Parts for Cone and Gyratory Crushers
Download Brochure
Cone Crushers
Reducing the Cost of Equipment ServiceReducing the Cost of Equipment Service
Gyratory crushers are designed for primary crushing, while cone crushers are used at the second, third, and fourth stages. Components in both machine types are exposed to mechanical wear and must be replaced regularly. Effective maintenance requires spare parts that are fully compatible with the specific crusher. When selecting wear-part materials, it is also essential to consider the processed rock type and operating conditions—this helps reduce the frequency of repair work.
Go to the catalogFull Supply for Any Crusher Type
Mining Element supplies spare parts for gyratory and cone crushers from leading brands: Sandvik, Metso, Terex, Telsmith, Uralmash, FLSmidth, ThyssenKrupp, TRIO, Zenith, and others.
With many years of experience solving complex engineering tasks, Mining Element provides not only analogues of original parts but also products adapted to customers’ operating conditions.
- Cone and bowl liners
- Upper frame (top shell) parts: spider cover and guards, upper bearing, seals, intermediate and support rings
- Lower frame (bottom shell) parts: frame bushing, liners, drive-shaft housing protection
- Main shaft parts: sleeve, head (cone) nut, dust seal/casing; a new burning/annealing ring is required at each relining
- Step (thrust) bearing and hydraulic-cylinder parts: main-shaft support, piston, wear plate and sleeve, Chevron seal
- Drive shaft and eccentric parts: gear pair, drive (counter) shaft, roller bearings, hubs, eccentric sleeve, wear-resistant eccentric plate
The catalogue covers crushers for large, medium, and fine crushing, with both supported and suspended main shafts.
Wear-Part Materials for Gyratory and Cone Crushers
Mining Element manufactures wear parts from manganese austenitic steels, wear-resistant steels with high Brinell hardness, and high-chrome white iron.

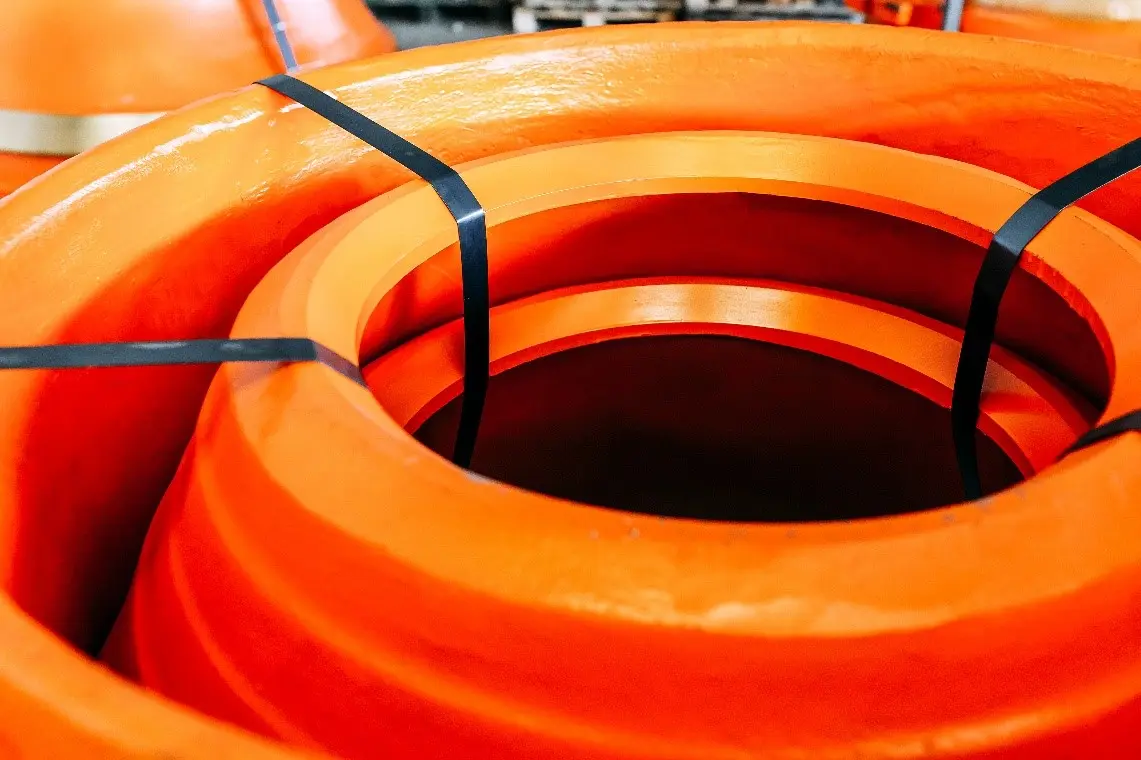

Cone and bowl liners are usually produced in manganese grades A, C, D, D1, D2. Technologists select the alloy according to the operating conditions of the specific crusher. For especially hard and abrasive rocks, steel may be additionally alloyed with molybdenum, nickel, and titanium.
Austenitic Manganese Steel Grades
Classic Hadfield steel. High structural strength, average resistance to abrasive wear; hardness increases significantly under impact (work-hardening).
For less abrasive rocks of small and medium hardness. Increased ultimate strength with lower impact-toughness indicators; improved abrasive resistance due to higher surface hardness under work-hardening.
General-purpose grade. Improved formulation with added chromium. Hardness after heat treatment up to ~270 HB; up to ~20% higher abrasive wear resistance compared with Grade A.
Suitable for very hard, large feed; recommended for use at the first crushing stage. Increased toughness indicators.
Suitable for the most abrasive rocks; recommended for the second or third crushing stage. The highest abrasive-wear resistance in the Element manganese line.
Service Life, Warranty, and Compatibility
Mining Element offers standard spare parts for gyratory and cone crushers, as well as non-standard components produced to individual designs. The price includes warranty support. During industrial tests, the customer pays the full amount only if the parts achieve the declared operating time. If a manufacturing defect affects service life, Mining Element will supply a free replacement, provide a discount on the next order, or send a service engineer to the production site to resolve the issue.
Warehouse program for prompt satisfaction of the needs of mining and other enterprises.
Technical support throughout selection, installation, and operation.
Efficient logistics: if a part is in stock, it is shipped on the day the order is placed.
In addition to spare and wear parts for crushing and screening equipment (CSE), Mining Element supplies conveyor components, wear-resistant materials, mill linings, hydraulic-transport parts, and general-industrial items.
